FACTORY SECONDS:

These boards had a manufacturing error in the COS/mute circuit. These boards do not work with active low input. This will not affect most as the radios that use the 6 pin Mini-DIN mostly use active high (which is recommended as per the manual). Simply select HIGH on the onboard switch and connect your radio.

This really only affects AllstarLink and other applications that need COS. Direwolf etc is not affected and other than that - they have been tested and work as normal.

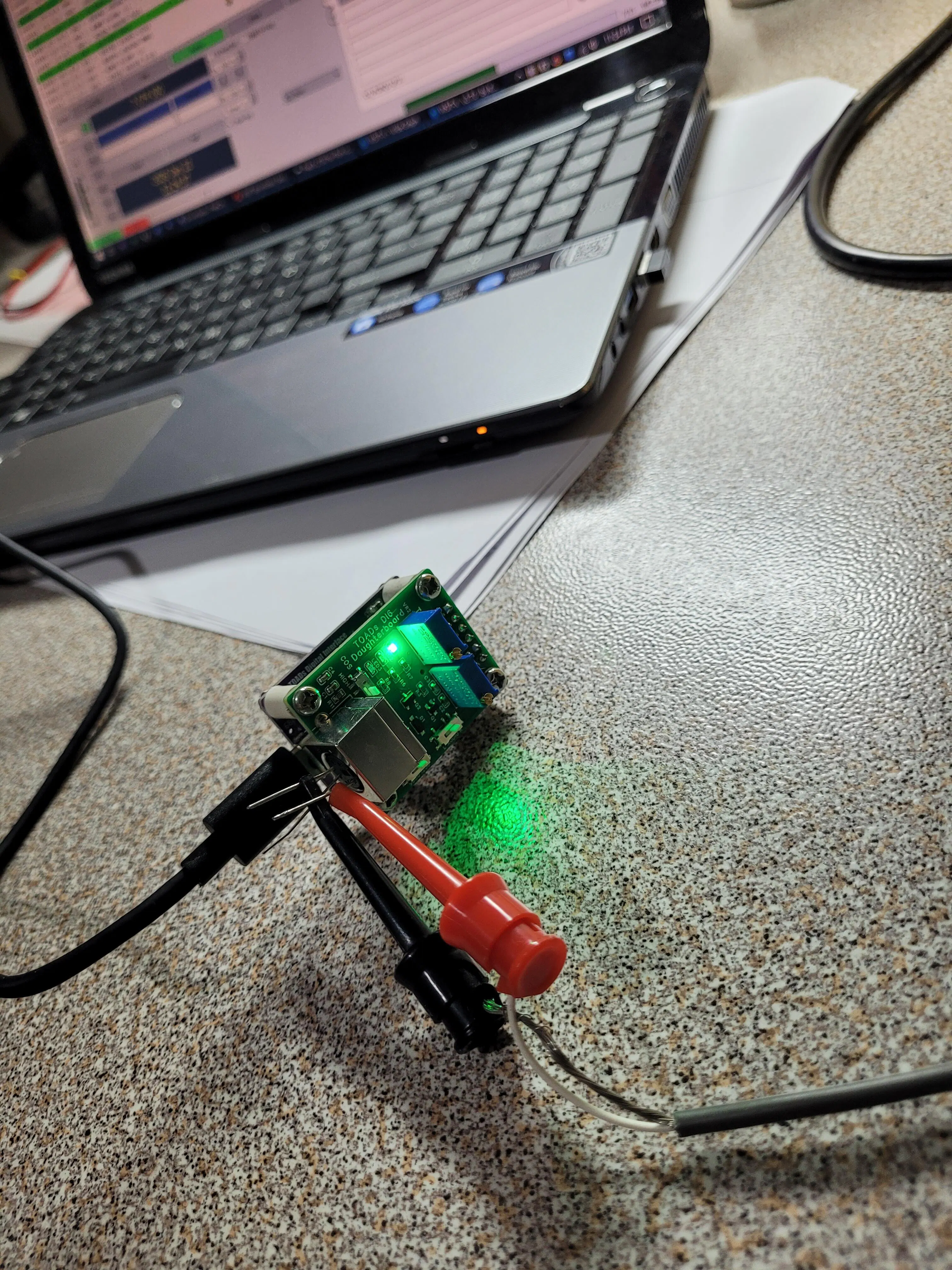

The TOADs DI6 is a compact and powerful daughterboard designed to interface directly with the TOADs Digital Interface. It provides seamless connectivity to radios that feature a standard 6-pin Mini DIN data port (commonly used for packet, APRS, and digital voice modes).


Key Features:

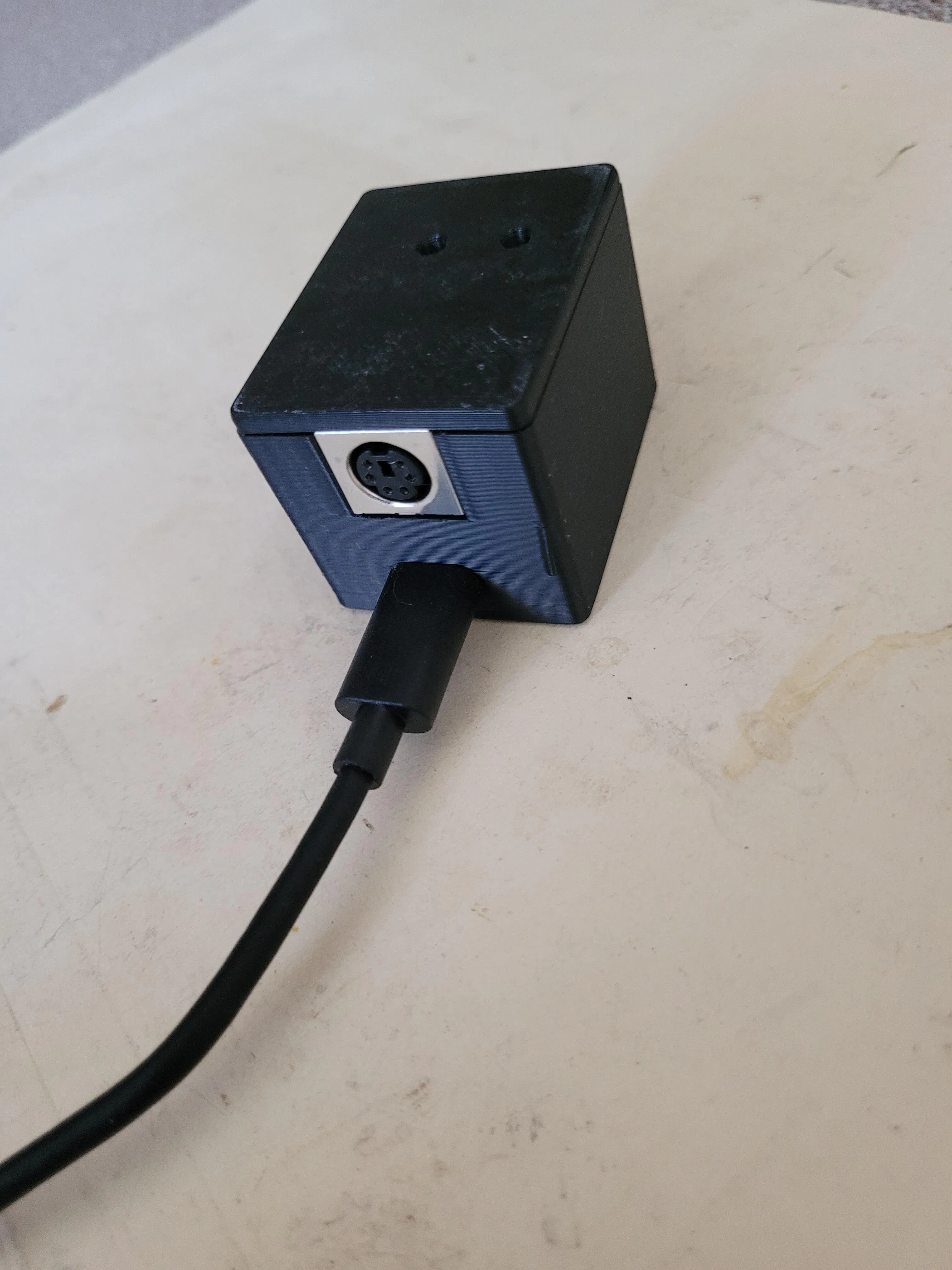

Radio Compatibility: Fits radios with a 6-pin Mini DIN DATA connector


Selectable Switches:
Audio Source (RX): Select between the radio’s 1200 bps or 9600 bps data input.
Audio Source (TX): Route audio from either the Left or Right channel of the CM108 sound interface.


Precision Audio Control:
Two 30-turn trimpots for fine adjustment of transmit and receive audio levels—ensuring optimal performance and clean audio for digital modes.


Headers are provided with the daughterboard for easy connection to your TOADs DI board.


For full installation instructions and technical details, please refer to the manual: https://geni.us/toads-di


Watch it in action here: https://youtube.com/shorts/KzsncpilbOg?feature=share
